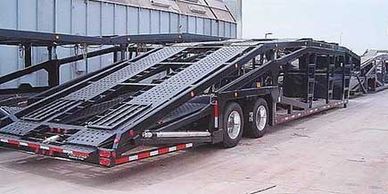

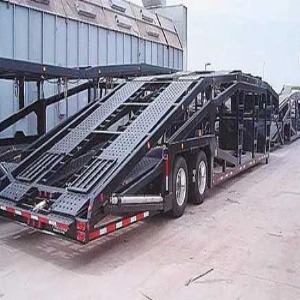

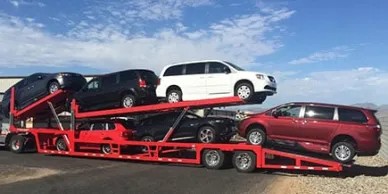

This trailer is quick and easy to load without spending time moving the deck. There are no separate decks to be moved and tilted. This trailer can also be built as a salvage trailer.

• Carries 6 full size vehicles
• 2 – 25,000 lb 77.5” wide track axles w/ automatic slack adjusters
• Aluminum outer wheels, steel inner
• 8 – 255 70R/22.5 tires
• Air ride suspension / ABS air brakes
• 53’ upper deck / 47’ lower deck
• Punched hole decking / will take straps
• 24 – Quick release ratchet assemblies – chains or straps
• Self contained hydraulics
• 5 – Aluminum cylinders
• Hydraulic loading ramps on rear lower deck
• Front and rear flippers on upper deck
• 4 – Center turn signals
• All LED lights
• Color of choice – full cover of black non-skid on decks

Note: Axle width w/ all tires on measures 100” outside to outside w/ a 50” spread between axles. Upper deck opens to 84” above the tandems U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

• Carries 6 full size vehicles
• 2 – 22,500 lb 77.5″ wide track axles w/ automatic slack adjusters
• Aluminum outer wheels, steel inner
• 8 – 255 70R/22.5 tires
• Air ride suspension / ABS air brakes
• 47′ lower deck / 40′ upper deck w/ 11′ tilt deck + flippers
• Punched hole decking – will take straps
• 22 Quick-release ratchet assemblies – chains or straps
• Self-contained hydraulics
• 7 Aluminum cylinders
• Hydraulic loading ramps on rear lower deck
• Front and rear flippers on upper deck
• 2 Center turn signals
• All LED lights
• Color of choice – full cover of black non-skid on all decks

Note: Axle width w/ all tires on measures 100" outside to outside w/ a 50" spread between axles. Upper deck opens to 84" above the tandems U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

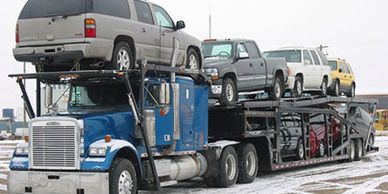

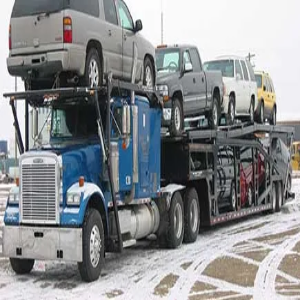

This trailer is the same as the 6-car but with the tilt deck on the upper front. This deck allows you to overlap the first two cars, thus allowing an extra 8-feet of loading area. The option of a shotgun on the tilt deck will allow you to load cars on a headrack.

• Carries 7 full size vehicles
• 2 – 25,000 lb 77.5” wide track axles w/ automatic slack adjusters
• Aluminum outer wheels, steel inner
• 8 – 255 70R/22.5 tires
• Air ride suspension / ABS air brakes
• 53’ upper deck / 47’ lower deck
• Punched hole decking / will take straps
• 28 – Quick release ratchet assemblies – chains or straps
• Self contained hydraulics
• 10 – Aluminum cylinders
• Hydraulic loading ramps on rear lower deck
• Front and rear flippers on upper deck
• Lift and tilt upper front end
• 4 – Center turn signals
• All LED lights
• Color of choice – full cover of black non-skid on decks

Note: Axle width w/ all tires on measures 100” outside to outside w/ a 50” spread between axles. Upper deck opens to 84" above the tandems U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

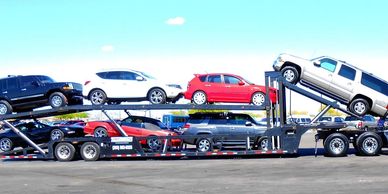

• Carries 7 full size vehicles
• 2 – 25,000 lb 77.5" wide track axles / automatic slack adjusters
• Aluminum outer wheels, steel inner
• 8 – 255 70R / 22.5 tires
• Air ride suspension / ABS air brakes
• 53' upper deck / 47' lower deck
• 8'6" front deck on top of fifth wheel
• Flippers on upper rear deck & lower front deck
• 28 – Strap or Chain assemblies
• Punched hole decking
• PTO ready
• 12 – Aluminum cylinders
• Hydraulic loading ramps on rear lower deck
• Hydraulic front end/tilt deck – 7 ft. ramps with 3 ft allowed for extensions
• 4 – Center turn signals
• All LED lights
• Color of choice – full cover of black non-skid

Note: Axle width w/ all tires on measures 100" outside to outside w/ a 50" spread between axles. Upper deck opens to 84" above the tandems U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

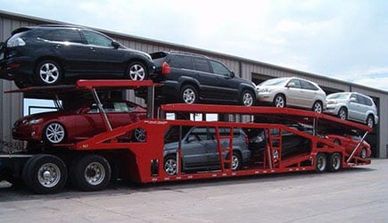

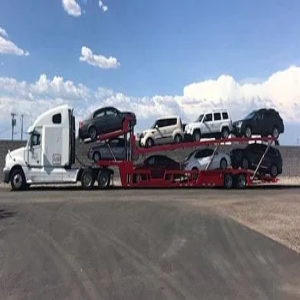

This 8 car hauler has quickly become the fastest selling trailer we manufacture. The upper level has a tilt deck equipped with a shotgun which allows you to drive directly onto a headrack, also allowing you to overlap the first and second car on the top deck of your trailer. The belly of our 8 car hydraulically lifts to allow a vehicle to be loaded directly over the fifth wheel.

• Carries 8 full size vehicles
• 2 – 25,000 lb 77.5” wide track axles / automatic slack adjusters
• Aluminum outer wheels, steel inner
• 8 – 255 70R/22.5 tires
• Air ride suspension / ABS air brakes
• 53’ upper deck / 47’ lower deck
• 8’6” front deck on top of fifth wheel
• Flippers on upper rear deck & lower front deck
• 32 – Quick release ratchet assemblies – includes 6 ft chains
• Punched hole decking / will take straps
• Self contained hydraulics
• 18 – Aluminum cylinders
• Hydraulic loading ramps on rear lower deck
• Hydraulic front end/tilt deck – 7 ft ramps with 3 ft allowed for extensions
• 4 – Center turn signals
• All LED lights
• Color of choice – full cover of black non-skid

Note: Axle width w/ all tires on measures 100" outside to outside w/ a 50" spread between axles. Upper deck opens 84” wide over tandems U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

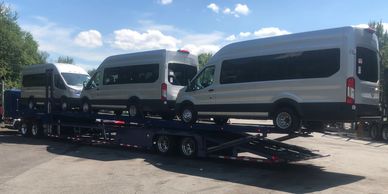

• Carries 8 full size vehicles
• 2 – 25,000 lb 71.5" wide track axles / automatic slack adjusters
• Aluminum outer wheels, steel inner
• 8 – 255 70R / 22.5 tires
• Air-ride suspension / ABS air brakes
• Flippers on upper rear deck & lower front deck
• 32 – Strap or Chain assemblies
• Punched floor decking
• Dual set-up hydraulics (opt.)
• 15 – Hydraulic cylinders
• Hydraulic loading ramps on rear lower deck
• Hydraulic front end/tilt deck
• 4 – Center turn signals
• All LED lights
• Color of choice – full cover of black non-skid

Note: Axle width w/ all tires on measures 100" outside to outside w/ a 50" spread between axles. Upper deck opens to 84" above the tandems U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

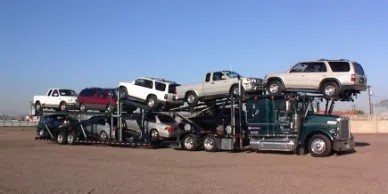

SS 6 CAR

The 6 car high-side trailer has independently tilting decks providing more versatility with your loads however it can also be loaded like a quick-loader when deck are positioned appropriately. These trailers are known for their strength and durability making them very popular in the colder regions and in Canada.

• Carries 6 full size vehicles
• 2 – 22,500 lb 77.5” wide track axles w/ automatic slack adjusters
• Aluminum outer wheels, steel inner
• Air ride suspension / ABS air brakes
• 8 – 225 70 R/22.5 tires
• 41’ upper deck / 42’ lower deck
• 1 – 56 inch king pin/5th wheel tongue – total length of trailer is 45’8”
• 36 – quick release ratchet assemblies – includes chains
• Pre-plumbed for wet kit/pto
• 16 – Aluminum cylinders
• Hydraulic loading ramps on rear lower deck
• Hydraulic tilt/front end on upper front deck – 6 foot hydraulic ramps for headrack
• Hydraulic tilt table in front bottom deck – with aluminum ramps for loading vehicles onto bottom rear position of tractor.
• Rear flippers on upper deck
• Front flippers on middle upper deck
• 4 – Center turn signals
• All LED lights
• Color of choice – solid colors only

Note: Axle width w/ all tires on measures 100” outside to outside w/ a 50” spread between axles. Upper deck opens up 84” above tandems. U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

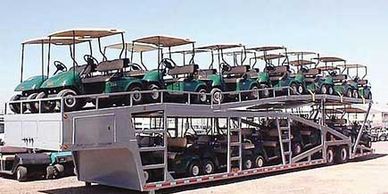

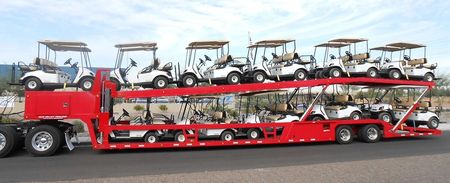

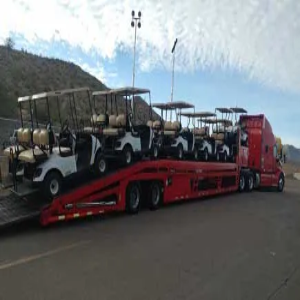

Developed from the 6/7 car carrier, it has full floors, punched decks, covered with non-skid paint for traction. This trailer can be pulled with a single rear axle truck and loaded with 2 carts side-by-side. The trailer can be used to carry cars, but wheel-straps must be used to tie them down. No chains are included.

• Can haul up to 26 standard size carts with tops
• 2 – 22,500 lb 77.5” wide track axles w/ automatic slack adjusters
• Aluminum outer wheels, steel inner
• 8 – 245/75R 17.5 tires
• Air ride suspension / ABS air brakes
• 53’ upper deck / 47’ lower deck
• Built to comply with all length/bridge laws
• 13 – ratchet assemblies – includes straps
• Self-contained hydraulics-no p.t.o. required
• 5 – aluminum cylinders
• Hydraulic loading ramps on rear lower deck
• 6 inch tall safety / side rail on upper deck
• 1 – full size tunnel toolbox w/ doors on both sides
• Punched hole / perforated decking
• 4 – center turn signals
• All LED lights
• Color of choice – solid colors only
• Anti-skid paint on flooring to allow for better traction

Note: Axle width w/ all tires on measures 100” outside to outside w/ a 50” spread between axles. Upper deck opens to 78” above tandems. U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

This trailer can carry 24-26 carts with tops, has a flow-thru tool box. It has punched floor decks, with non-skid paint; comes with 12 ratchet assemblies, including straps. All carts can be tied down from the ground.

• Can haul up to 24 standard size carts with tops
• 2 – 22,500 lb 77.5” wide track axles w/ automatic slack adjusters

• Aluminum outer wheels, steel inner
• 8 – 235/75R 17.5 tires
• Air ride suspension / ABS air brakes
• 53’ upper deck / 47’ lower deck
• Built to comply with all length/bridge laws
• 12 – ratchet assemblies – includes straps
• Self-contained hydraulics-no p.t.o. required
• 5 – aluminum cylinders
• Hydraulic loading ramps on rear lower deck
• 6 inch tall safety / side rail on upper deck
• 1 – full size tunnel toolbox w/ doors on both sides
• Punched hole / perforated decking
• 4 – center turn signals
• All LED lights
• Color of choice – solid colors only
• Anti-skid paint on flooring to allow for better traction

Note: Axle width w/ all tires on measures 100” outside to outside w/ a 50” spread between axles. Upper deck opens to 78” above tandems. U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

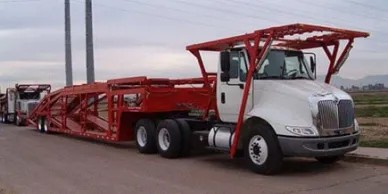

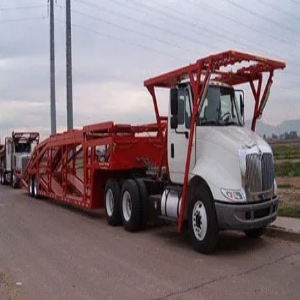

• Can carry 1 full size vehicle
• Rack lengths vary depending on size of tractor
• Head racks are semi-custom and individually built / installed
• Punched hole steel decking / will take straps
• Hydraulic drop front end
• 4 lights per side
• Chain pockets
• 6 quick-release ratchet assemblies w/ chains
• Set-up for high mount trailer

Note: All headracks are built and installed with customer provided exhausts / stacks. We DO NOT do any custom exhaust / stack work. Call for specific details. U.S. & Canada legal on Federal level – State & Provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.

Options include: New Fifth wheel, Electrical hydraulic pump, Hydraulic tank

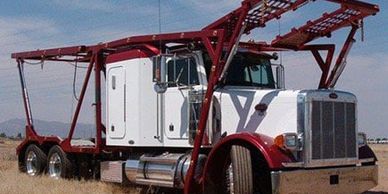

• Can carry 3 full size vehicles
• Rack lengths vary depending on size of tractor
• Head racks are semi-custom and individually built / installed
• Punched hole steel decking / will take straps
• 12 quick-release ratchet assemblies
• Chain pockets available

Note: All headracks are built and installed with customer provided exhausts / stacks. We DO NOT do any custom exhaust / stack work. Call for specific details. U.S. & Canada legal on Federal level – State and provincial level varies from one to another. It is the sole responsibility of the purchaser to know the laws within the areas where they do business.
